S-5! WindClamp™

Specially engineered to significantly increase the wind-resistance capacity of your roof. Placed at specific intervals, these clamps prevent male-to-female seam separation and clip disengagement during high-wind events. While all S-5! clamps add rigidity, the WindClamp is purpose-built for select concealed-fastened profiles, offering the most effective and economical solution for wind uplift protection.

S-5! WindClamp™ Features

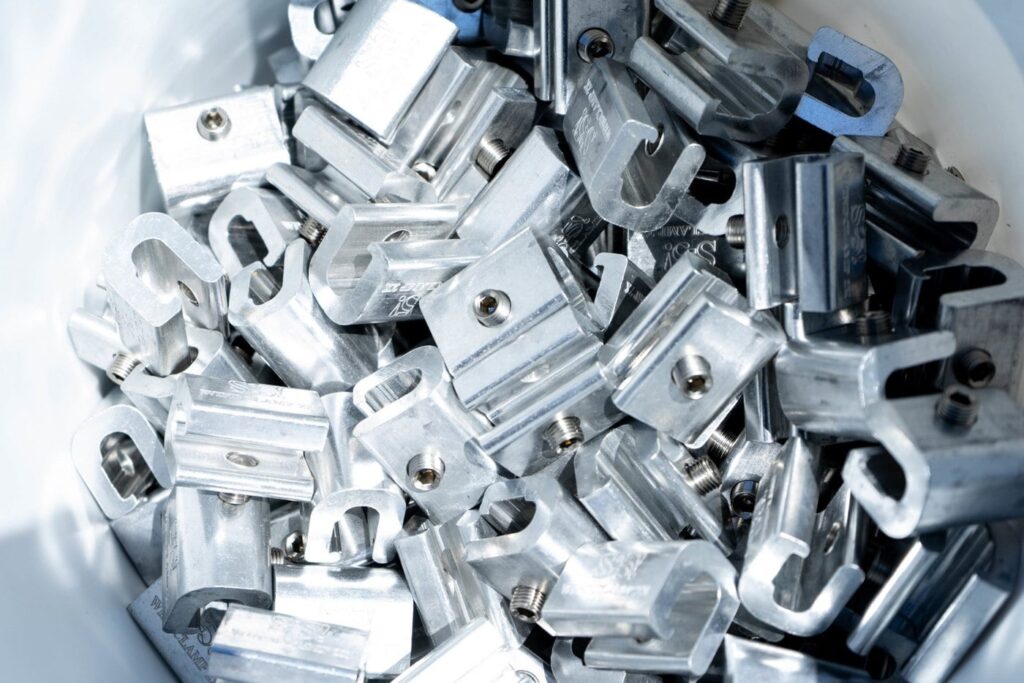

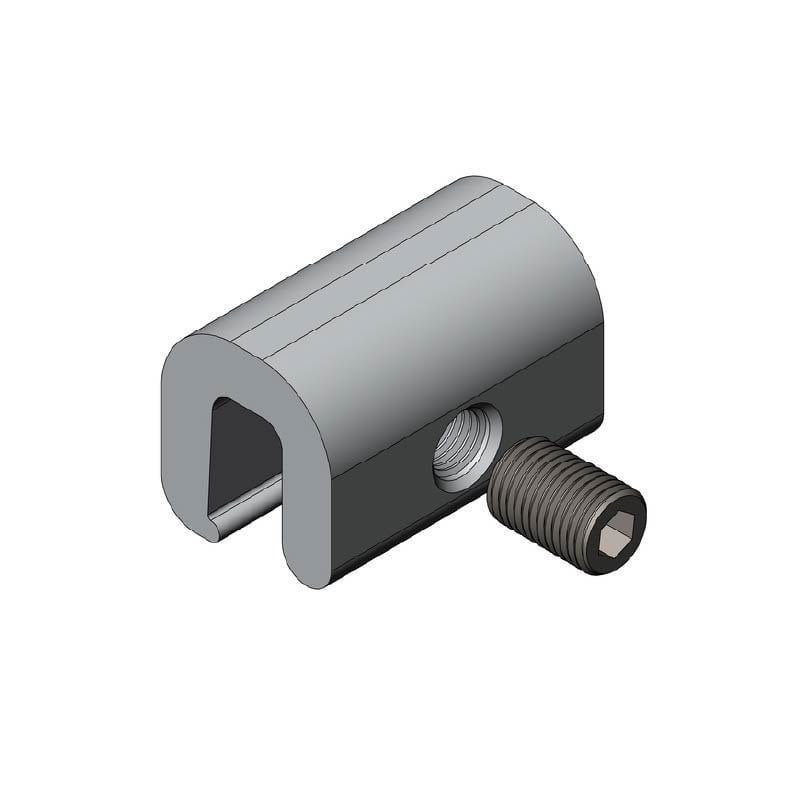

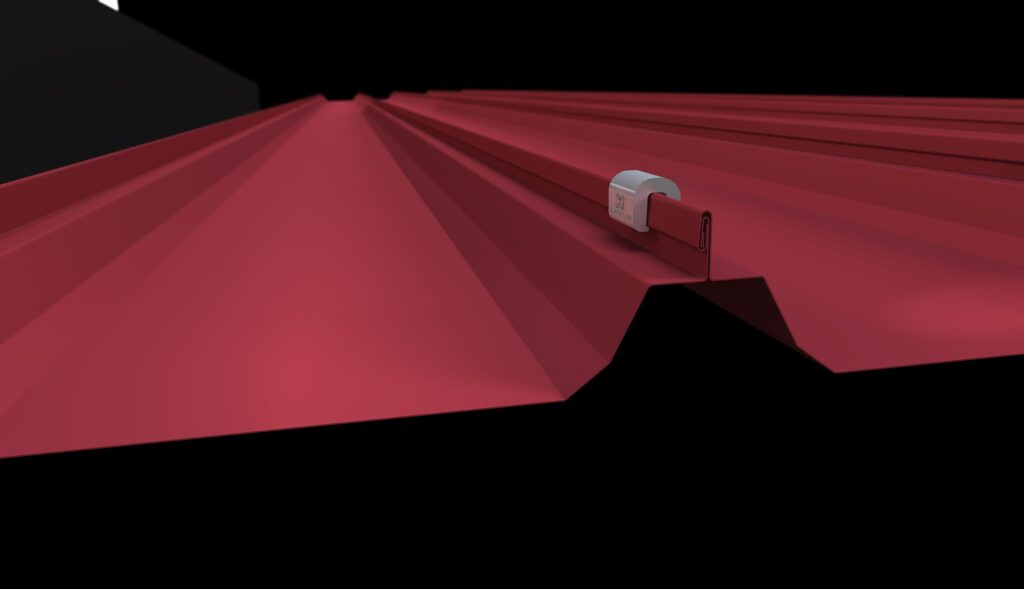

S-5! WindClamps™ (also known as "external seam clamps") are a cost-effective solution designed to significantly increase the wind-resistance capacity of standing seam metal roofs. By placing these small aluminum clamps over the seam at specific intervals, you can prevent male-to-female seam separation and clip disengagement, often increasing wind uplift resistance by as much as 300%.

Ideally suited for existing construction, offering a solution that is far less intrusive and less costly than roof replacement or structural modifications.
Capable of increasing failure pressures by up to 3X (300%) depending on panel profile, gauge, and purlin spacing, allowing roofs to meet stricter wind codes.
Utilizes the same dependable, round-point setscrew technology as standard S-5! clamps, securing the seam without piercing the metal or voiding warranties.
Helps bring existing buildings into compliance with modern standards like ASCE 07-16 without the need for expensive structural changes.

S-5! WindClamp™ Images

S-5! WindClamp™ Specifications

Engineered for specific concealed-fastened seam profiles, S-5! WindClamps offer a tailored fit to ensure maximum holding strength and performance.



Get in Touch

Connect with us for your S-5! WindClamp™ needs.
